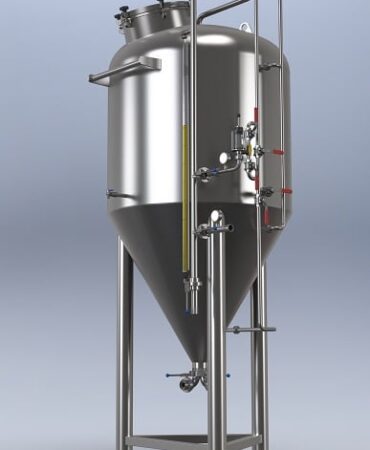

The isobaric fermenter is made of AISI 304L and completely insulated with vertical cylindrical execution on 3/4 legs depending on the size, complete with adjustable foot and under-leg plate, having the following technical characteristics:

• PED certification, suitable for use up to 2 bars
• Off-centre manhole cover, diameter 400 mm, totally removable
• Total drain, partial drain, sample tap
• Cooling jacket on cylindrical body and conical bottom, inside which water with glycol flows at the temperature set by the control unit
• Internal spray ball with removable arm complete with washing pipe and connection
• Upper pressure and vacuum valve with pressure gauge
• Temperature management valve on the cavity, PID temperature control with PT100 probe
• Completely demountable level group, complete with easily washable exclusion taps
• Easy cleaning allowing automatic washing and lower maintenance costs
• Ladder rest and lifting hooks.

All our productions are completely customisable, both in terms of volumes and overall dimensions and Brew Moon Model design.
Available in models for 5hl, 10hl, 20hl, 40hl litres, and other sizes on request.

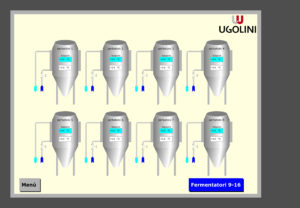

PLC control capable of monitoring the refrigeration unit, storing the graphs of fermentation, managing the temperatures in the hot and cold rooms and can also access all functions remotely, which means that you can monitor and control all functions from your PC or your mobile phone without the need to be physically present in the fermentation cellar.
