Brew houses

3hl Plants
– dimensions mm. 2130x900x1260H
– capacity 250 l. finished must at 15°

  • made of Aisi304 stainless steel
  • pipes DN 32 and DN 40
  • single stage plate heat exchanger
  • electric control panel
  • electric heating system with 14,4 kW power and three-phase 3/380/50 Hz power supply + n
  • mash vat + boiling tank with conical bottom, rounded lid, insulation
  • filter vat + whirpool with sloping flat bottom and removable false bottom, single-walled lid, insulation.

6hl Plants
dimensions mm. 3190x1350x1400H

  • capacity 500 l. finished must at 15°
  • made of Aisi304 stainless steel
  • pipes DN 32 and DN 40
  • single stage plate heat exchanger
  • electric control panel
  • gas heating system with 34,0 kW power and three-phase 3/380/50 Hz power supply + n
  • mash vat + boiling tank with conical bottom, rounded lid, insulation
  • filter vat + whirpool with sloping flat bottom and removable false bottom, single-walled lid, insulation.
    Designed  for the addition of a second MULTIFUNCTIONAL TANK that can double the production capacity.

    • Cooking/boiling vat

  • made of AISI 304 2B stainless steel
  • rounded roof
  • cylindrical planking
  • bottom with connection to the planking
  • pressed sheet metal support feet
  • cylindrical body and bottom fully wrapped outer covering
  • thermoregulation system for steam
  • motorised agitation unit with variable speed through inverter
  • insulation and covering with rock wool 80 mm thick.

    • Filter vat

  • made of AISI 304 2B  stainless steel
  • rounded/flared roof
  • cylindrical planking
  • bottom with connection to the planking
  • pressed sheet metal support feet
  • completely welded planking insulation with high thermal insulation capacity
  • special agitation unit
  • grain discharge system
  • insulation and lining with rock wool 80 mm thick.

    • Whirpool vat
    After boiling, the finished must is poured into a special machine called ‘whirpool’. The Whirpool is basically a vat equipped with a rotating blade

  • made of Aisi304 stainless steel
  • roof with planking connection
  • cylindrical planking
  • bottom with connection to the planking

    • EXCHANGER

    At the exit of the whirpool, the must is passed through a plate heat exchanger to be cooled:

  • AISI 316 stainless steel plates
  • single stage

    • Electrical control panel
    Touch PLC for automatic management of all brewery parameters

    Pipes

  • stainless steel transfer pump with open impeller
  • stainless steel connection pipes polished to a mirror finish inside
  • butterfly valves
  • safety filter

    • Platform

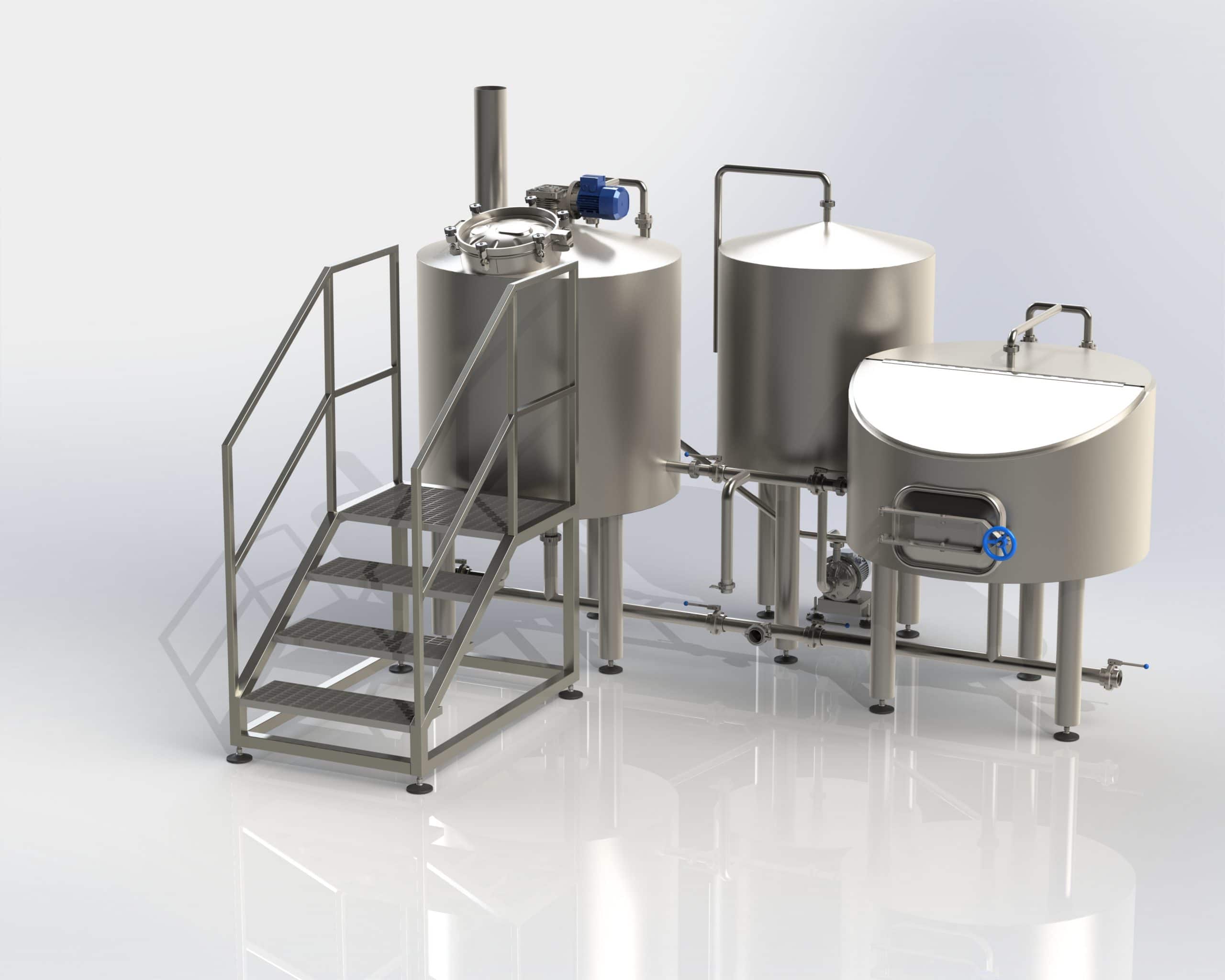

  • steel platform completes with safety ladder suitably shaped and adapted to the 3 vats.
